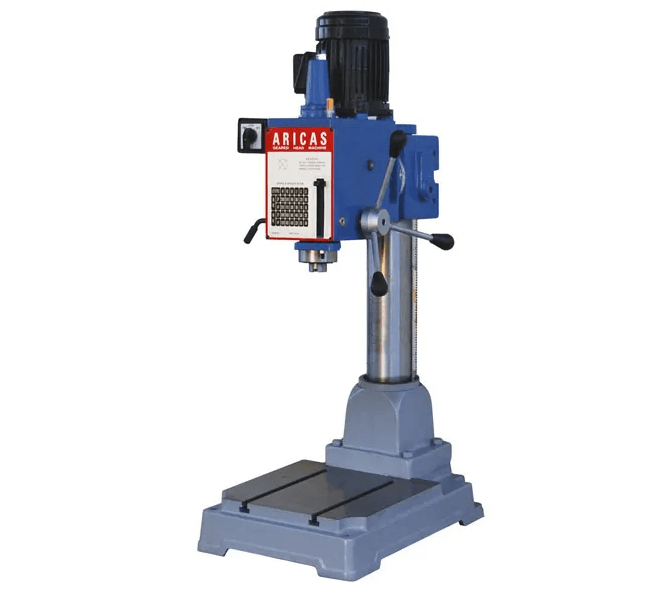

ARICAS GEAR HEAD BENCH DRILL, 3MT, 415V 3PH
$3,089.00
- SKU
- GEM400GD-3
- Type
- simple
- Availability
- In stock
Quality Taiwanese Precision Machine for drilling & tapping.
\n# 3 Morse Taper Spindle.
\n1120W Three Phase Motor.
\nGeared Head Tilts 90° right & left.
\nForward and Reverse Operation.
\nIncludes 3MT - J6 arbor with drawbar thread M12 x 1.75
\nNo chuck supplied
\n
\nDrilling Capacity Cast Iron: 40mm
\nDrilling Capacity Steel: 32mm
\nSpindle Taper: #3MT
\nSpindle Nose to Base: 620mm
\nSpindle to Colomn: 275mm
\nDiameter of Column: 110mm
\nQuill Diameter: 75mm
\nQuill Travel: 120mm
\nSwing: 550mm
\nHead Tilting: 90° Right & Left
\nHead Swivel: 360°
\nSpindle Speeds (240v) : 100, 220, 380, 760, 1240, 2500rpm
\nSpindle Speeds (415v) : 50, 100, 190, 380, 670, 1250rpm
\nOverall Height: 1075mm
\nBase Dimensions: 450 x 650mm
\nN.W. / G.W. : 220 / 245kg
\nShipping Dimensions : 800 x 780 x 1120mm
