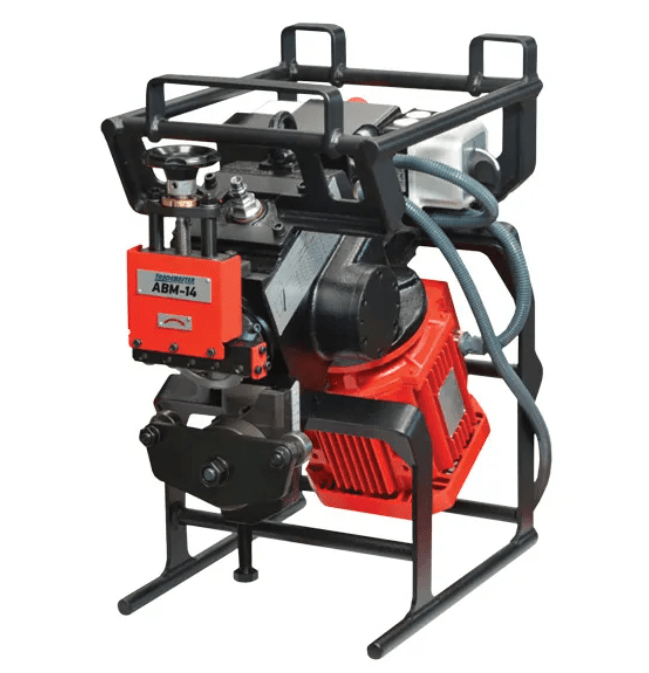

ITM ABM-14 AUTO FEED PORTABLE BEVELLING MACHINE, 415v 2.2KW MOTOR, 22.5 - 45° BEVEL ANGLE, MAX BEVEL WIDTH 14MM, 6 - 40MM PLATE THICKNESS

Voltage: 3~ 400 V + PE, 50/60 Hz
\nPower: 2200 W
\nSpindle speed: 9 rpm
\nBevel angle range(ß – depending on angle device in use): 30° 22.5°, 25°, 35°, 37.5°, 45° (options)
\nBevel width (b): up to 14 mm (9/16°)
\nMaximum bevel in one single run: 12 mm (in 40 Kg/ 392 MPa carbon steel)
\nMinimum plate thickness: 6 mm (1/4")
\nMaximum plate thickness: 40 mm (1-9/16")
\nMinimum plate width: 55 mm (2-3/16")
\nBevel length per minute: 2.6 m (8.5 ft)
\nMinimum pipe ID: 100 mm (4”)
\nWeight: 65 kg
