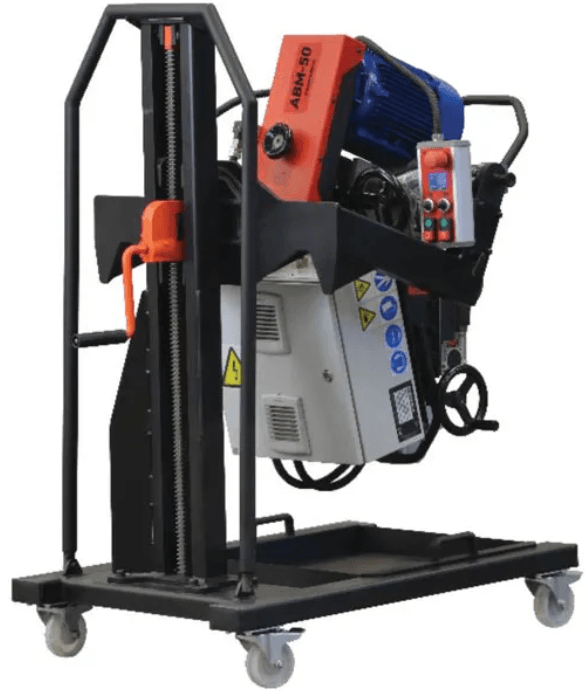

ITM ABM-50 AUTO FEED DOUBLE SIDED BEVELER, 415V 4KW MOTOR, 15-60° BEVEL ANGLE, MAX BEVEL WIDTH 50MM, 8 - 80MM PLATE THICKNESS

Power: 6.5 kW
\nSpindle speed ( no load ): 300–800 rpm
\nFeed speed: 0–1.2 m/min (47”/min)
\nBevel angle: 15–60°
\nMaximum bevel width: 50mm (2”)
\nMaximum depth of cut allowed per single pass: 6mm (1/4")
\nPlate thickness: 8–80mm (5/16–3-1/8”)
\nRequired ambient temperature: 0–40 °C (34–104°F)
\nWeight: 320 kg (700 lbs)
