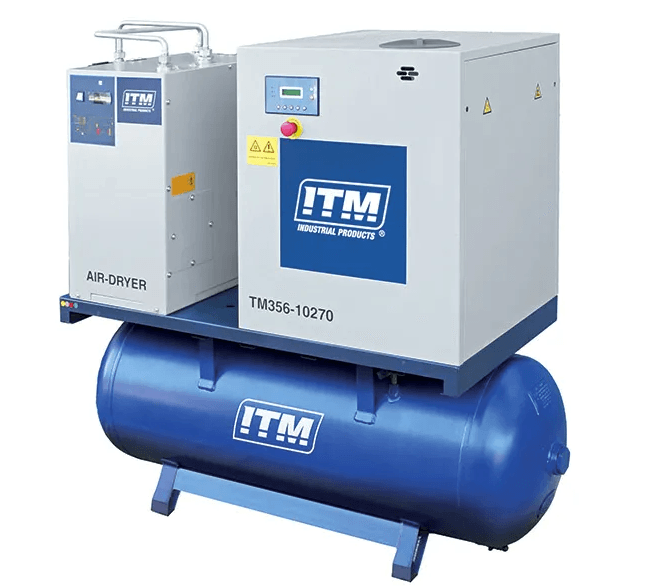

ITM AIR COMPRESSOR ROTARY SCREW WITH REFRIGERATED DRYER, 3 PHASE, 10HP, 270LTR, FAD 1080
$11,726.36
- SKU
- TM356-10270
- Type
- simple
- Availability
- In stock
Pump Type: Screw
\nMotor: 7.5kW (10HP) - Three Phase 415V
\nTank Capacity: 270 L
\nMax Pressure: 147 PSI (10 Bar)
\nFree Air Delivery: 1080 L/min (38CFM)
\nNoise: 66 dB
\nCompressor Dimensions: 154cm L x 74cm W x 144cm H
\nNet Weight: 358kg
\nShipping Dimensions:174cm L x 99cm W x 197cm H
\nGross Weight: 448kg
\n
\nEffective Working Pressure At Outlet Package: 10.0 bar
\n
\n<h3|LIMITATIONS FOR OPERATIONS</h3|
\n<ol|
\nMaximum Effective Working Pressure At Outlet Package: 10.0 bar
\nMinimum Effective Working Pressure At Outlet Package: 5.0 bar
\nMaximum Allowable Inlet Temperature: 46°C
\nMinimum Ambient Temperature: 0°C
\n</ol|
\n
\n<h3|PERFORMANCE DATA COMPRESSOR</h3|
\n<ol|
\nFree Air Delivery At Reference Conditions: 14.17L/s or 0.85m³/min or 30.0cfm
\nMean Sound Pressure Level (2): 68 dBA
\n</ol|
