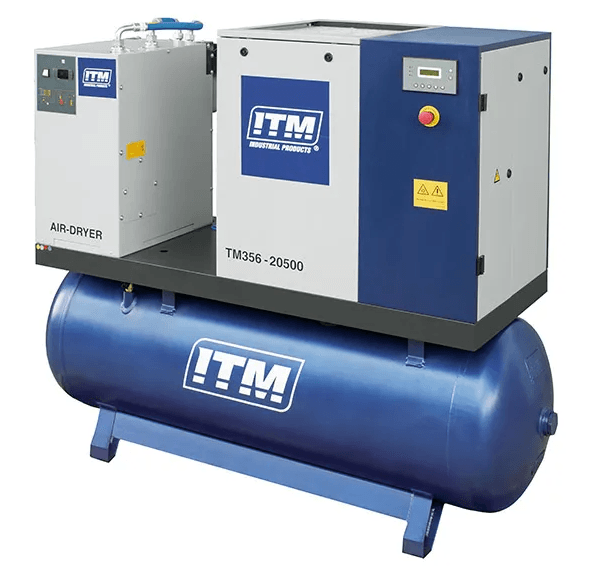

ITM AIR COMPRESSOR ROTARY SCREW WITH REFRIGERATED DRYER, 3 PHASE, 20HP, 500LTR, FAD 1980
$14,949.00
- SKU
- TM356-20500
- Type
- simple
- Availability
- In stock
Pump Type: Screw
\nMotor: 15kW (20HP) - Three Phase 415V
\nTank Capacity: 500 L
\nMax Pressure: 147 PSI (10 Bar)
\nFree Air Delivery: 1980 L/min (70 CFM)
\nNoise: 73 dB
\nCompressor Dimensions: 188cm L x 65cm W x 158cm H
\nNet Weight: 465kg
\nShipping Dimensions:205cm L x 90cm W x 175cm H
\nGross Weight: 588kg
\n
\nEffective Working Pressure At Outlet Package: 10.0 bar
\n
\n<h3|LIMITATIONS FOR OPERATIONS</h3|
\n<ol|
\nMaximum Effective Working Pressure At Outlet Package: 10.0 bar
\nMinimum Effective Working Pressure At Outlet Package: 5.5 bar
\nMaximum Allowable Inlet Temperature: 45°C
\nMinimum Ambient Temperature: 0°C
\n</ol|
\n
\n<h3|PERFORMANCE DATA COMPRESSOR</h3|
\n<ol|
\nFree Air Delivery At Reference Conditions: 30.60L/s or 1.8m³/min or 64.8cfm
\nMean Sound Pressure Level (2): 73 dBA
\n</ol|
