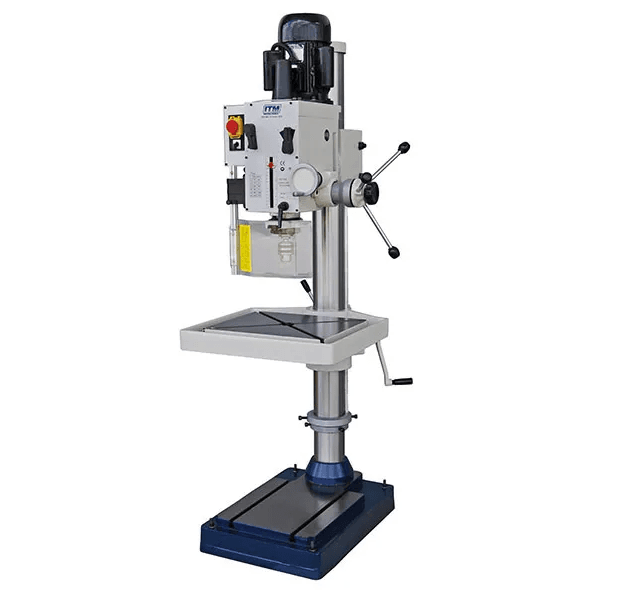

ITM GEARED HEAD DRILL, 4MT, 415V 3 PHASE
$4,399.00
- SKU
- TGD400-3
- Type
- simple
- Availability
- In stock
Quality precision machine for drilling & tapping.
\nNo. 4 Morse taper spindle.
\n1120W motor, three phase.
\nMicro feed precision.
\nGeared head tilts 90° right & left.
\nForward and reverse operation.
\nAccessories include arbor, with drawbar thread M16 x 2.0, 16mm drill chuck, drill sleeves
\n
\nMax Drilling Capacity: 40mm
\nSpindle Taper: 4MT
\nSpindle Nose To Base: 1180mm
\nSpindle Nose To Table: 715mm
\nSpindle To Column: 272.5mm
\nDiameter Of Column: 115mm
\nSpindle Travel: 120mm
\nSwing: 660mm
\nSpindle Speeds: (rpm) 75, 170, 280, 540, 960, 1600
\nTable Dimensions: 540 x 470mm
\nOverall Height: 1770mm
\nBase Dimensions: 650 x 450mm
\nT -Slot Size: 14mm
\nN.W. / G.W.: 320 / 370kg
\nShipping Dimensions: 740 x 720 x 1830mm
