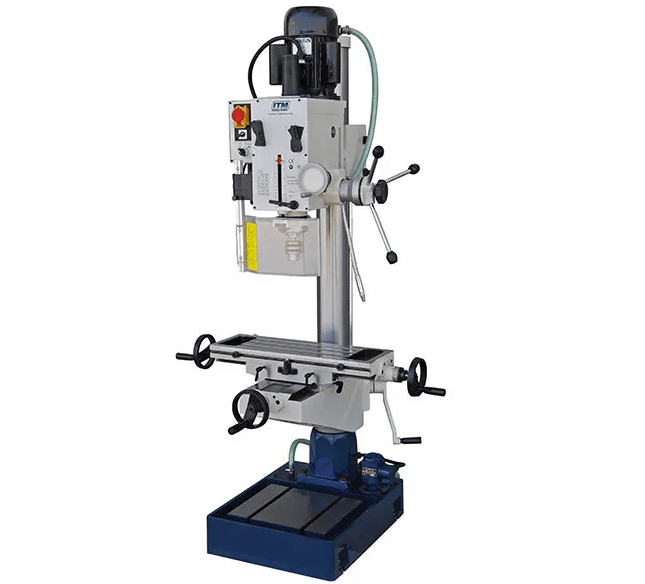

ITM GEARED HEAD MILL DRILL WITH COOLANT, 4MT, 240V SINGLE PHASE
$4,629.00
- SKU
- TGMD400-1
- Type
- simple
- Availability
- In stock
Quality precision machine for drilling, milling & tapping.
\nNo. 4 Morse taper spindle.
\n1120W motor, single phase.
\nMicro feed precision.
\nGeared head tilts 90° right & left.
\nForward and reverse operation.
\nRecirculating coolant system.
\nAccessories include arbor, with drawbar thread M16 x 2.0, milling chuck, 16mm drill chuck, drill sleeves
\n
\nMax Drilling Capacity: 40mm
\nSpindle Taper: MT4
\nSpindle Nose To Base: 1180mm
\nSpindle Nose To Table: 610mm
\nSpindle To Column: 272.5mm
\nDiameter Of Column: 115mm
\nQuill Travel: 120mm
\nSwing: 660mm
\nSpindle Speeds (rpm): 75, 170, 280, 540, 960, 1600
\nTable Surface: 600 x 190mm
\nCross Travel: 190mm
\nLongitude Travel: 370mm
\nOverall Height: 1770mm
\nBase Dimensions: 650 x 450mm
\nT -Slot Size: 12mm
\nN.W. / G.W.: 340 / 390kg
\nShipping Dimensions: 820 x 720 x 1830mm
