ITM MINI SPIDER WELDING CARRIAGE,18V CORDLESS, INCLUDING BATTERY

\n
• Voltage: 18 V DC, 5.2 Ah | 1~ 110–240 V, 50–60 Hz (option)\n
• Power: 25 W\n
• 200mm Minimum working width\n
• Welding position (according to EN ISO 6947 and AWS/ASME):
  \n
  • PB / 2F\n
  • PD / 4F
  \n
• Torch diameter: 16–22 mm (0.63–0.87’’)\n
• Min. workpiece thickness: 4 mm (0.16”)\n
• Ground clearance: 4 mm (0.16”)\n
• Horizontal pulling force: 150 N\n
• Vertical pulling force: 100 N\n
• Horizontal speed **: 0–110 cm/min (0–43.3 in/min)\n
• Vertical speed **: 0–100 cm/min (0–39.4 in/min)\n
• Weight (w/o battery): 7.6 kg (22 lbs)\n

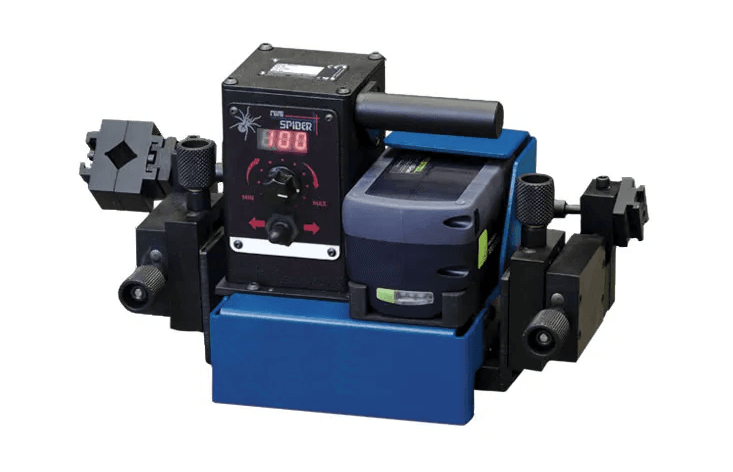

\n \nThe Mini Spider is a battery-powered welding tractor designed to produce continuous fillet welds using MIG/MAG torches. The torch can be easily swapped from one side of Mini Spider to another.\n

\n
• 4-wheel drive system with magnetic traction and a feedback loop provides highly efficient speed stabilization.\n
• Constant, continuous and repeatable travel speed enables weld bead geometry that is exact to the required specifications, thus reducing costly over welding and substantially decreasing filler metal usage.\n
• Compact and lightweight design to weld in narrow spaces\n
• Convenient 18 V DC battery supply* (the same battery for both Mini Spider and Gecko Battery) with an optional power supply that can be used to plug the carriage into a 110–240 V power source.\n
• Torch placement on left or right side\n
• Welding edge to edge\n
• Closed-loop speed control system based on electric motor with encoder – ensures increased speed accuracy\n
• Consistent heat input reduces distortion\n
• Reduces wasted filler metal – eliminates over welding\n
• Digital LED display for presetting of travel speed and diagnostic messages\n
• Low-battery indicator\n
• Built-in guide rollers\n

\n*Charger sold seperately \n \n
