ITM

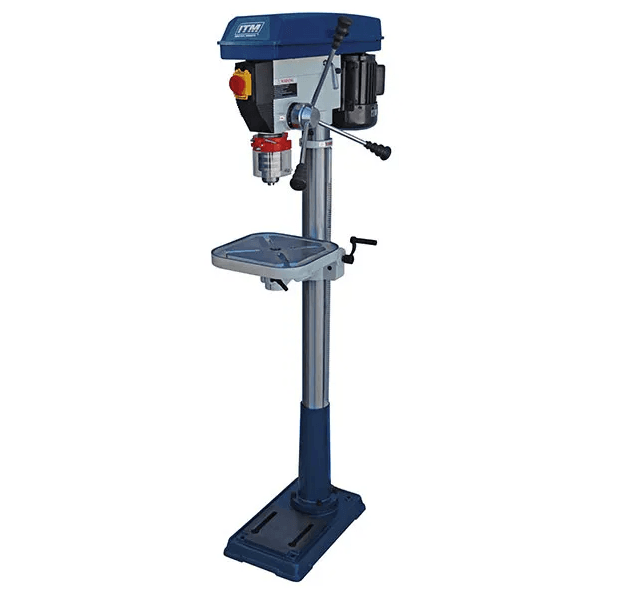

ITM PEDESTAL FLOOR DRILL PRESS, 3MT, 20MM CAP, 12 SPEED, 360MM SWING, 750W 240V
$769.00
- SKU
- TD1420F
- Type
- simple
- Availability
- In stock
Quality casting, construction & componentry.
\nEmergency stop.
\nNVR safety switch.
\n
\nEach Unit Supplied With:.
\nChuck safety guard.
\nDrill chuck & arbor.
\nDrill drift (on MT models)
\n
\nDrilling Capacity (mm): 20mm (3/4")
\nSpindle Taper: #3MT
\nChuck: 5-20mm B22
\nMotor Power: 750W 240V
\nSpindle Travel (mm): 85
\nSpeed: 12 Speed 280-2380
\nSwing (mm): 360
\nTable Size / Base Size (mm): 290x290 / 460x272
\nColumn Diameter (mm): 80
\nT-Slot Size: 16mm
\nHeight (mm): 1600
\nN.W. / G.W. (kg): 64 / 68
\n
\nDrill press vice to suit: VDP102 or VDP150
\nCross slide vice to suit: TM130-100
$769.00
