ITM

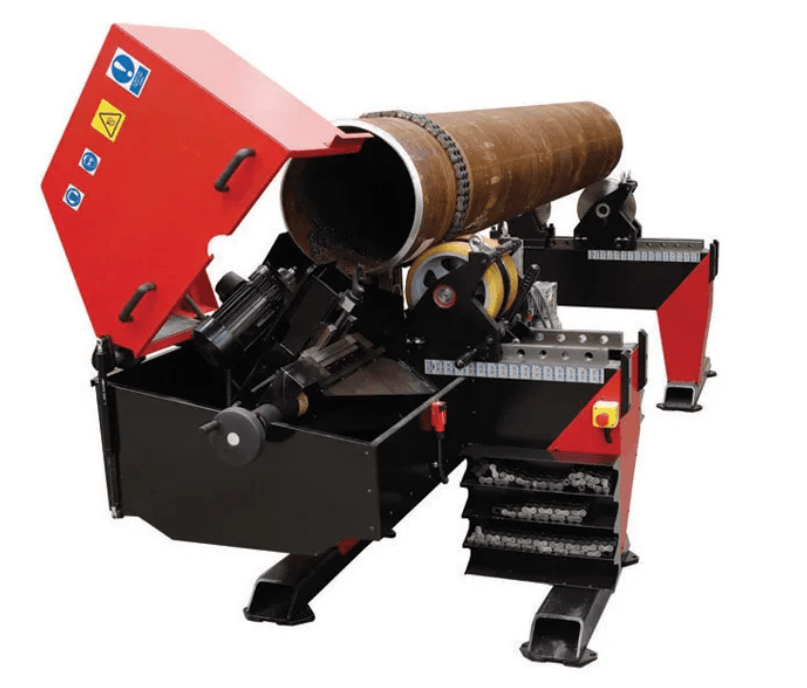

ITM PIPE BEVELLING MACHINE, PRO40PB 240V SINGLE PHASE CAP: 200 - 1000MM PIPE
$52,999.00
- SKU
- WA-PRO40PBS
- Type
- simple
- Availability
- In stock
Power supply: Single Phase 240V
\nExternal pipe diameter range: 200-1000mm Pipe Longer Than 830mm;
\n200-600mm Pipes Of 400-830mm Length
\nMaximum pipe weight: 6 000kg With Standard Plastic Rollers On Active Support
\n10 000kg With Optional Steel Rollers On Active Support
\nMin. pipe thickness: 5mm
\nPipe fixing: Mechanical With Chain
\nFeed rate: 100 - 1100 mm/min
\nBevelling angle range: 0° - 60° With Continuous Angle Adjustment
\nMax OD bevel width: 45mm
\nMax ID bevel width: 5mm Standard, Up To 20mm - Optional
\nBevelling type J: YES - Optional
\nJ type bevelling radius: 6mm or 8mm
\nOverall Dimensions (with a 1.4m x 1m dia. pipe): 2372mm L x 1507mm W x 1993mm H
\nWeight: 1100kg
$52,999.00
