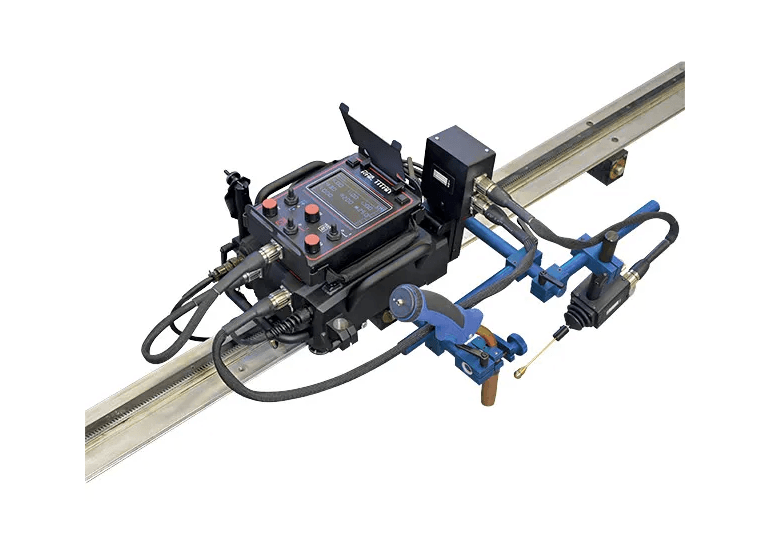

ITM RAIL TITAN, TRACK BASED WELDING CARRIAGE WITH OSCILLATOR AND REMOTE CONTROL

0 \n \n

\n
• Modular tig-mig-mag welding and cutting carriage\n
• In-built oscillator\n
• Rack and pinion drive track system\n

\n
\n

\n
• Suitable for TIG welding (HF resistant)\n
• Robust design with die-cast aluminium housing\n
• Ergonomic remote control pendant with simple and easy to find control knobs makes adjustments possible without lifting of the operators welding hood\n
• Programmable path of stitch welds\n
• Suitable for variety of circumferential and irregular surface applications down to min. radius of 100mm\n
  - Ring tracks on diameters from 200mm O.D. to 3m O.D.\n
  - Hi-Flex tracks on diameters from 1500mm O.D. upwards\n
  - Custom rolled tracks on diameters from 3m O.D. to 10m O.D.\n
  - Semi-Flexible tracks can be flexed to minimum radius of 5m without permanent deformation\n
• Optional seam tracking enables active compensation of torch position vertically and horizontally with and without oscillation\n
• Suitable for all welding positions on both ferromagnetic and non-ferromagnetic materials thanks to rack and pinion drive and various tracks equipped with magnetic or vacuum units\n
• Rail Titan produces consistent high-quality welds and cuts in a fraction of the time required by manual operations\n
• Wide input voltage range: 100-240V, 50-60Hz single phase\n
• European made\n

\n
\n * All tracks sold separately
\n
\n
\n

Rail Titan Specifications:

\n
\nVoltage: 1~100 - 240V, 50 - 60Hz
\nPower: 60W
\nWelding Position (According To EN ISO 6947 And AWS/ASME) Horizontal:
\n

\n
• PA/1F/1G
  \n
• PB/2F\n
• PC/2G\n
• PD/4F\n
• PE/4G\n

\nWelding Position (According To EN ISO 6947 And AWS/ASME) Vertical:
\n

\n
• PF/3G\n
• Pg. /3F (Contact Your Dealer)\n
• Pg. /3G\n

\nFixing On Pipes And Round Workpieces:
\n

\n
• Fixing On Pipes And Round Workpieces Ring Tracks (O.D.): 200mm - 3m\n
• Hi-Flex Tracks (O.D.): Minimum 1.5m\n
• Hi-Flex Tracks (I.D.): Minimum 3.4m\n
• Custom Rolled Tracks (O.D.): 3-10m (Contact Your Dealer)\n
• Semi-Flex Tracks (O.D.): Minimum 10m\n

\nTorch Type: MIG/MAG, TIG, Oxy-fuel, Plasma
\nMig/Mag Torch Diameter: 16 - 22mm
\nMinimum Workpiece Thickness For Magnetic Clamping: 5mm
\nHorizontal Pulling Force: 400N
\nVertical Pulling Force: 315N
\nHorizontal Speed: 0 - 250 cm/min
\nVertical Speed: 0 - 250 cm/min
\nOscillation Type: Linear
\nWeld Path: Straight, Triangle, Trapezoid, Square
\nOscillation Width: 0.1 - 11.8cm
\nOscillation Speed: 10 - 200 cm/min
\nOscillation Dwell Time At Center And On Ends: 0 - 5s
\nMaximum Oscillator Pulling Force: 100N
\nOverall Dimensions: 350mm (L) x 510mm (W) x 400mm (H)
\nWeight (Incl. Standard Accessories): 13kg
\n
\n
\nPackage Includes:\n

\n
• Rail Titan\n
• Plastic box\n
• Remote control pendant\n
• 5m Remote control cable\n
• 3m Remote control cable\n
• 0.5m Remote control cable\n
• Power cord\n
• 6.5m Arc ignition cable\n
• 300mm rod\n
• 300mm rack with 180mm adjustment\n
• Rack holder\n
• Clamping block with levers\n
• Short rod torch holder with fits-all clamp\n
• Cable anchor\n
• Contact block\n
• 6mm Hex wrench\n
• Operator’s manual
