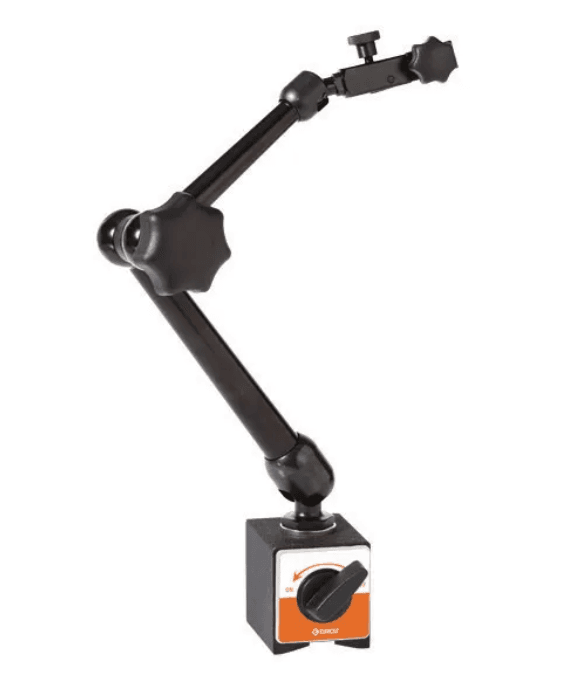

MB/30 GROZ ARTICULATING ARM WITH MAGNETIC BASE, TYPE I, L=180 MM, BASE: 30X40X35 MM, 320 N, WITH 3/8 HOLE DIA AND A 3/8 - 8MM SLEEVE.

Code: MB/30
Type: I
Arm Length: 180mm
Base: 30x40x35mm
Magnetic Power: 30kg \n \nAccepts test indicators with dovetail clamping mechanism.
Arm has 3 articulating joints that can be locked with a single knob handle.
Dial gauges can be used with 3/8" or 8mm diameter stem.
Magnetic bases have ON/OFF switch.
Base has a vee groove that securely fastens to the ferrous work piece or machine table.
Working Angle : 150°.
Hole Diameter : 8mm (3/8").
Slot : 6.5mm
