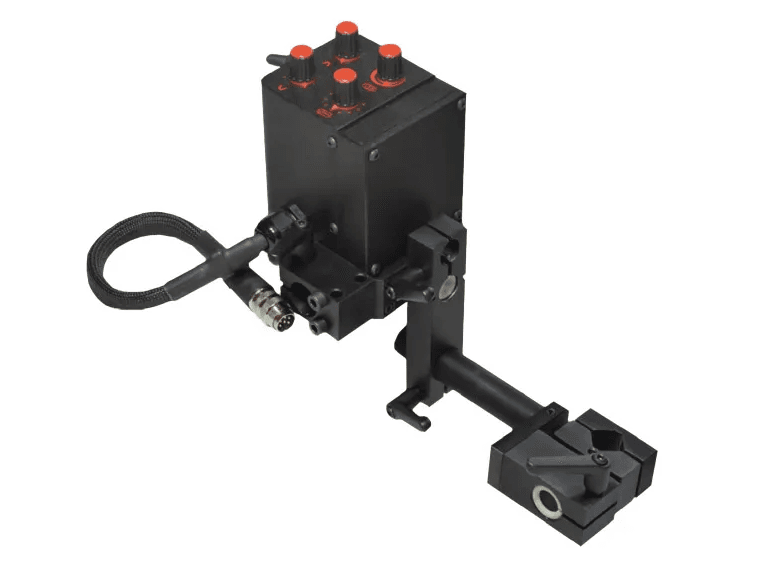

OSC-8 PENDULUM WEAVE WELDER

\n
• Voltage: 14-24V DC\n
• Power: 50W\n
• Torch Type: MIG / MAG\n
• Torch Diameter: 16-22mm (5/8-7/8")\n
• Oscillation Type: Pendulum\n
• Oscillation Width At r=150 mm (6"): 12–115 cycles/min (1-100%) , 1/32" to 1-3/16" (1-100%)\n
• Oscillation Speed At Oscillation Width Of 10mm (3/8") And Zero Dwell Time On Ends: 1/32" to 1-3/16" (1-100%)\n
• Oscillation Dwell Time On Ends: 8 Nm (5.7 lb ft)\n
• Required Ambient Temperature: 0-50°C\n
• Weight: 2kg\n

\n \nThe OSC-8 pendulum oscillator is designed to oscillate MIG/MAG torches with the diameter of 16-22mm (5/8–7/8").
\nThe oscillator is installed onto a 22mm (7/8") diameter rod and connected to a welding device.
\nIt can be controlled manually or by using an external START-STOP switch.
\nUsing an optional freestanding support allows welding of rotating pipes or moving plates. An optional power supply allows connecting the oscillator to a 230V power source.\nOSC-8 is suitable for MIG/MAG automate processes in heavy fabrication industries such as: pipeline and bridge construction, shipbuilding and tank welding.\n

\nOSC-8 can work either as stand-alone Pendulum Weave Welder or along with freestanding support or along with welding carriages.\n

\n

\n
• Lightweight and compact design\n
• Two control modes: manual and external start\n
• Four adjustable parameters (oscillation width, oscillation speed, oscillation dwell time on ends)\n
• Simple control panel (four knobs)\n
• Can work as stand-alone device or be a part of more advanced welding system\n
• Optimal solution for various welding applications\n
• Real improvement of the welding process\n
• Uniform and high quality welding\n
• Supply voltage 14-24V (direct connection to the welding tractor or an external automation system)\n
• Optional power supply 230V\n
